D-Line Safe-D F-Clip 40 for 38mm+ Trunking (Pack 50) – SAFEDFCLIP40/50


D-Line Safe-D F-Clip 40 for 38mm+ Trunking (Pack 50) – SAFEDFCLIP40/50

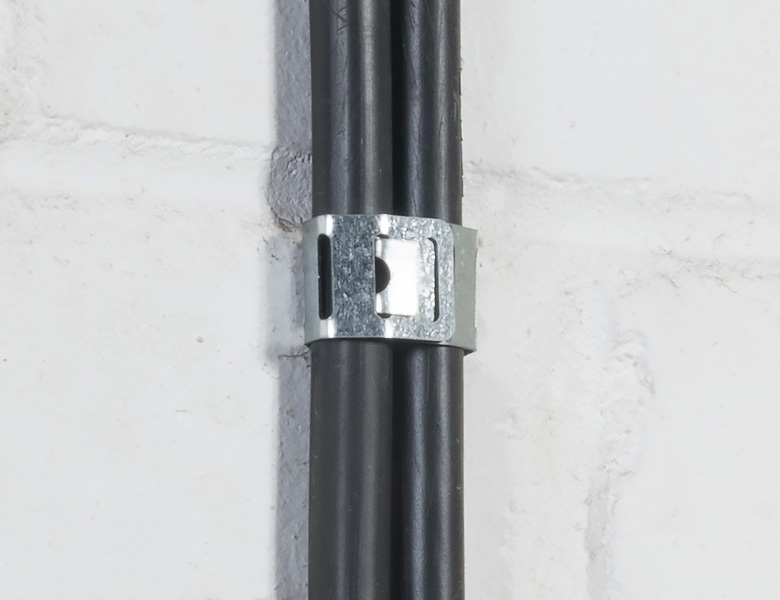

Safe-D F-Clip 40 is a fire-rated flexible cable clip that is supplied in flat form, and can be quickly folded to make a variety of shapes to most effectively secure cable installations.

Installers can pass the locking tab through a choice of opposing notches, according to the volume of cables to be secured – and to make the required shape.

Safe-D F-Clip notches can be flexed (for example to open for adding or removing cables) up to five times, after which replacement F-Clips should be used.

The locking tab gives greatest security, and can be return-folded if preferred.

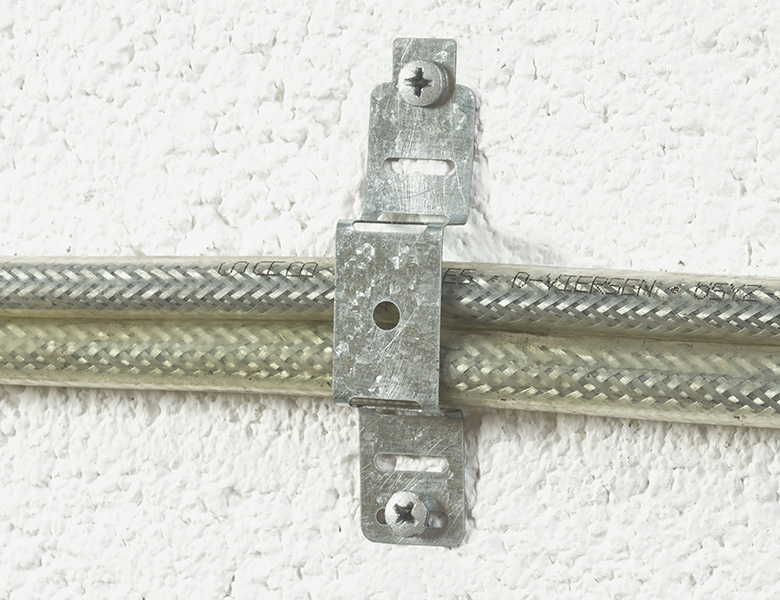

Installers should use a fire-rated fixing, such as D-Line D-Fixings, and then simply fold-over tabs to secure cables.

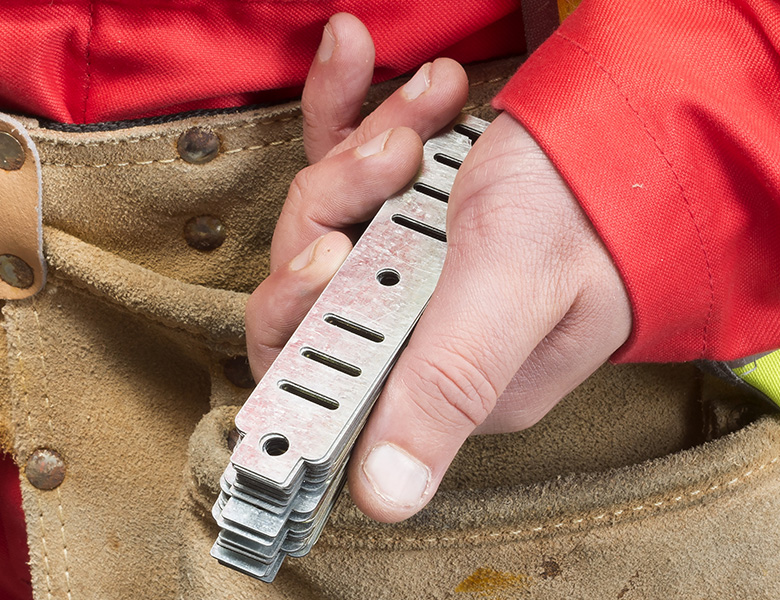

  • Supplied flat…
    • – Space efficient and pocket friendly
    • – Easier handling – to save installation time
    • – Easy folding to consider space and cable volume
    • – Perfect for shot fired fixings
  • Fully safety tested and certified as BS5839 part 1 compliant.
  • >1200ºc melting point
  • Locking feature to hold cables most securely… simply push the tab through the preferred notch
  • Locking tabs can be return-folded for a more secure installation
  • 3x fixing holes for versatility, ideal for use with D-Line D-Fixings
  • Thumb friendly, rounded corners, 20mm wide, and pliable for easy installation
  • Fit direct to surface, or in PVC trunkings
  • Easy to later add or remove cable(s) – Can be opened/closed up to 5x

110mm (L) x 20mm (W) x 30mm (H Folded)
5.7mm Diameter Pre-drilled hole in base
