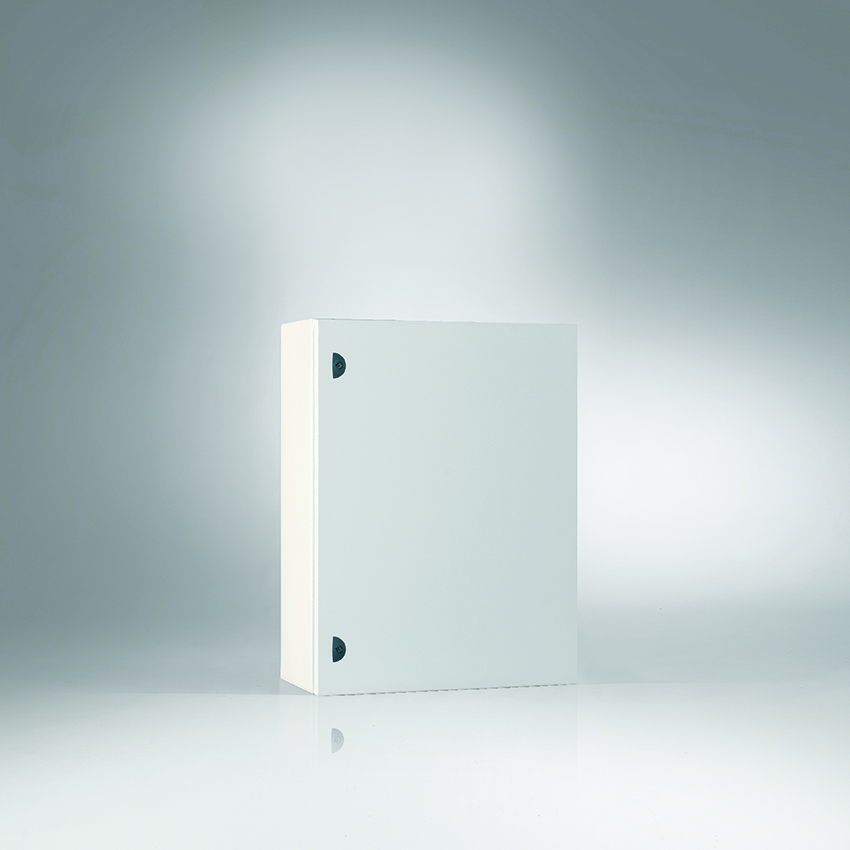

ETA IP66 Sheet Steel Enclosure H400 x W600 x D200 – ST6420
Enclosure and door manufactured from 1.5mm thick sheet steel. Mounting plate manufactured from 2.5mm thick sendzimir sheet steel.
ETA standard epoxy polyester powder coating. Enclosure and door: colour RAL 7035 textured finish.
Box supplied with:
- Door provided with locking system with a 3mm doubler key and zinc passivated rails to be fixed
- Mounting plate
- Cable entry plate with sealing gasket
- Screws for earth connection and mounting accessories
- IP66 complying with IEC EN62208; EN63362
- Nema 4 complying with UL508A; UL50
- Protection degree guaranteed by the two-component polyurethane foam seal
- Impact resistance IK10 complying with IEC EN62208; EN62262
Note: main accessories to be ordered separately
- Inner door
- Modular kit
- Brackets for wall mounting
