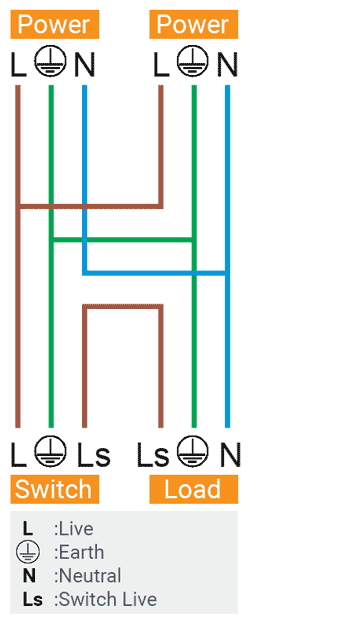

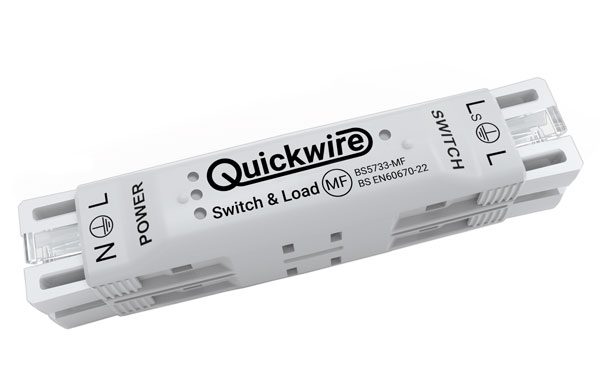

The Quickwire Switch & Load allows for two power connections, one switch connection and one load connection.

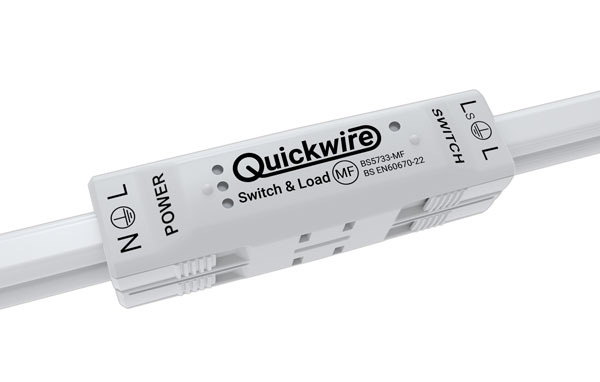

Use the first power inlet to connect power to your circuit. Plug-in your luminaire and switch cable to complete your circuit. Each cable inlet is prewired, and labelled for quick and simple identification.

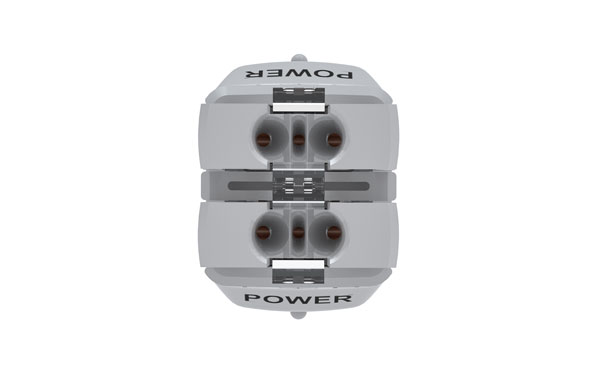

To take power on to a new circuit/room simply connect another Switch and Load using the second power inlet.
If you want to connect multiple luminaires you can use a Quickwire Splitter.
Rating: 16A 250Va.c.
Overcurrent protection limited to 16A
Standards: BS EN 60670-22
Conductor Size: 1.0mm² – 1.5mm² Twin & Earth (CPC) Solid cores
Class 1 (conductors)
Dimensions: 23mm x 31mm x 84mm (cable entries inserted)
IP Rating: IP30

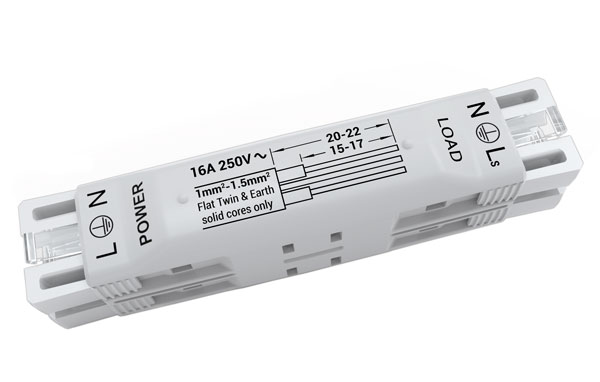

Cut and strip the 1.0mm² / 1.5mm² solid core, flat twin and earth cable as shown above:
