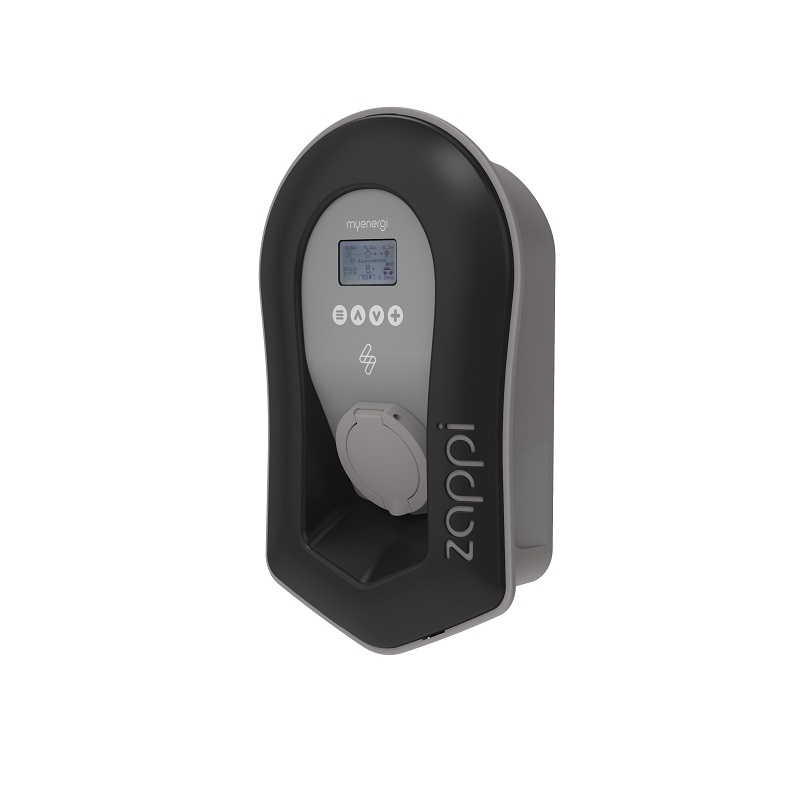

Zappi Eco-Smart EV Charge Point 22kW Untethered Black – ZAPPI-227UB
About Zappi – The smart EV charger in a league of its own.
Zappi is a smart EV charger with a difference. Not only does it operate as a traditional EV charger, it can also charge your EV using 100% FREE energy generated from your Solar PV or wind generation.
Here’s the SMART bit. zappi can charge for FREE using your PV during the day and be set to charge at the most economical times at night if you have preferred economy rates from your energy provider. All controllable by the myenergi APP.
No PV? No Problem!! If you don’t have a PV system, zappi can still operate like an ordinary EV charging station importing from the grid. You can always add your solar/wind system later.
- Programmable timer function
- Dynamic load balancing for maximum installation flexibility
- Charge and event logging
- Pin-code lock function
- Tap operated display backlight
- Built-in RCD protection
- Integral cable holster
- Remote control and monitoring add-on option
- Supplied with clip-on grid current sensor
- 3x charging modes: eco, eco+ and fast
- Optimises microgeneration self-consumption
- Economy tariff sensing
- 18th edition ready
- Available in 7kW or 22kW (3-phase)
- OLEV (Home Scheme) Approved – Hub device required
- 3 year warranty
Charge power is continuously adjusted in response to changes in generation or power consumption elsewhere in the home. Charging will continue until the vehicle is fully charged, even if power is drawn from the grid.
Charge power is continuously adjusted in response to changes in generation or power consumption elsewhere in the home. Charging will pause if there is too much-imported power, continuing only when there is surplus free power available.
In this mode, the vehicle will be charged at maximum power. This is just like an ordinary Mode 3 charging point.
|Rated Power||7kW (1-ph) or 22kW (3-ph)|
|Rated Supply Voltage||230V AC Single Phase or 400V AC 3-phase (+/- 10%)|
|Supply Frequency||50 Hz|
|Rated Current||32A max|
|Standby Power Consumption||3W|
|Earth Leakage Protection Integral||30mA Type A RCD (EN 61008) + 6mA DC protection (EN 62955)|
|Economy Tariff Sense||Input 230V AC sensing (4.0kV isolated)|
|Wireless Interface||868 MHz (proprietary protocol) for wireless sensor and remote monitoring options|
|Grid Current Sensor||100A max. primary current, 16mm max. cable diameter|
|Cable Entry||Rear, bottom or side|
|Enclosure Dimensions||439 x 282 x 122mm|
|Protection Degree||IP65 (weatherproof)|
|Operating Temperature||-25°C to +40°C|
|Circuit Breaker||40A curve B (2-pole 1-ph or 4-pole 3-ph)|
|Earthing Arrangement||can be connected to the PME supply. Complies with BS 7671:2018, 722.411.4.1 (iii)|
|TT||earth resistance < 200 Ω according to BS 7671:2018, or < 100 Ω for some vehicles|
