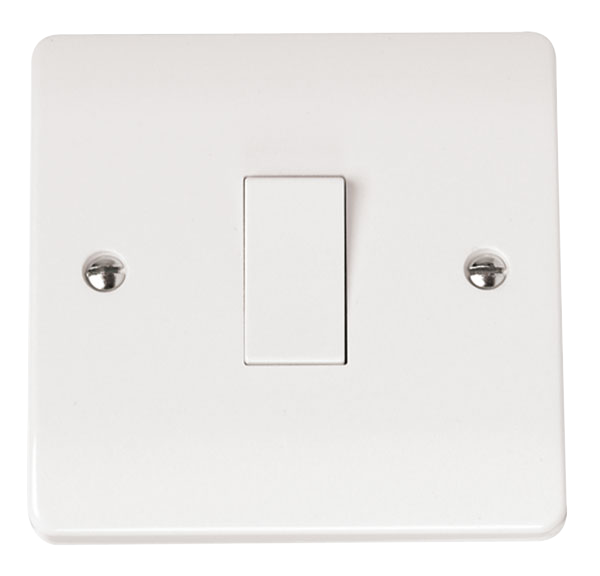

Click Mode 1G 2W Switch – CMA011

Plate Dimensions : 86mm (W) x 86mm (H) x 9.5mm (D)
Plate Design & Finish : Rounded Profile Polar White
Materials Front Plate & Rocker Switch: Urea Rear Housing: Nylon
Terminals: Brass Terminal Screws: Steel & Yellow Passivated
Contacts: Silver “on-lay” Copper / Brass Internal Busbars: Formed Pressed Brass
Maximum Voltage : 250V~ 50Hz
Load Rating : 10AX (Suitable for Inductive Loads)
Plate Fixing Centres : 60.3mm
Terminal Size : 3.5mmø
Terminal Torque : 0.5Nm
Terminal Capacity : 4 x 1.5mm2or 2 x 2.5mm2
Two Way : Yes
Ingress Protection : IP20
Back Box Depth : 16mm Minimum
Termination Type : Screw
Operational Temperature : -5°C to +40°C
